AIM-TTI_PSA1302 Handheld RF Spectrum Analyzers 1.3GHz Spectrum Analyzer
- 1MHz to 2700MHz frequency range
- Resolution bandwidths of 1MHz, 280kHz or 15kHz
- -96dBm typical noise floor at -20dBm reference level
- Measurement in dBm or dBuV, mV or uW
- Zero span mode with AM and FM audio demodulation
- Trace modes of normal, peak hold and trace average
- Auto-find automatically sets sweep parameters for the highest signal found)
- Unlimited storage for waveforms, set-ups and screens
- USB interfaces for Flash drives and PC connection
- More than 8 hours continuous operation from a charge
- Smaller and lighter than other spectrum analyzers (weight only 20 oz)
- Limit lines and limit patterns with limits comparator
- Data logging of peak values, complete traces or screen images from timer, external trigger or limits comparator
- Level offsets and compensation tables
- Sweep triggering from external trigger or limits comparator
- Custom Presets - fast change for repetitive setups
- Capability to show screen contents on a PC Detaillierte Informationen
Additional features - with option U01:
| (exkl. MwSt.) | € 1 052,45 |
| Preis inkl. MwSt. | € 1 262,94 |
| Verfügbarkeit des Produkts | 4 Wochen |
| Produktnummer | AIM-TTI_PSA1302 |
Garantie 36 Monate
Detailbeschreibung AIM-TTI_PSA1302 Handheld RF Spectrum Analyzers 1.3GHz Spectrum Analyzer

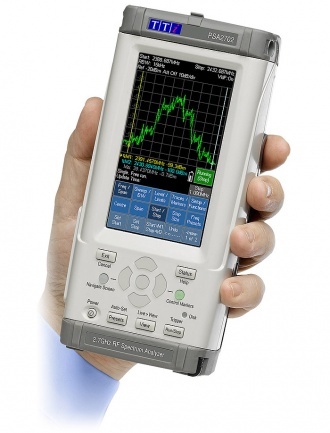

The PSA Series II is sufficiently small and lightweight to fit comfortably into the hand - unlike most other so-called handheld spectrum analyzers. A removable screen protector and sun-shield combines with rubberised buffers top and bottom to enhance its use in the field.
The 4.3” TFT display provides a wealth of detailed information. Colour is used to clearly distinguish between multiple traces, markers and limit lines. The touch-screen uses a three row hierarchical menu system to provide fast and intuitive control of the many functions.
The PSA Series II operates from a Li-ion rechargeable battery that can provide more than eight hours of continuous operation. If switched off to conserve power, it returns to normal operation within two seconds of switch-on with all data retained. It can also be set to switch off automatically after a set time from the last action. For continuous bench top operation it can be powered from its AC adaptor which also recharges the batteries in less than 3 hours.
With nearly 2GB of internal memory, the PSA Series II can store thousands of waveforms, instrument set-ups, or complete screen images. With option U01 installed, it can also log tens of thousands of results and make use of compensation tables and limit patterns. All files can be saved with either default file names or with user defined names using the alpha-numeric keypad. USB Flash drives can be used to copy and backup data, or transfer it to a PC for analysis. Alternatively a USB device interface is included for direct connection to a PC for file transfer
The small size fits perfectly into the hand and the low weight of only 560 grms (20 oz) allows it to be carried anywhere.
