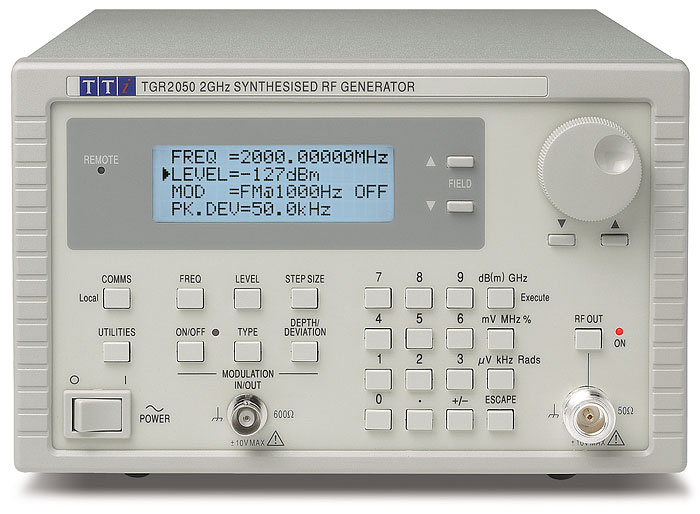

AIM-TTI_TGR2050 2GHz RF Signal Generator, RS232 & GPIB

150 kHz to 2000 MHz frequency range
10 Hz setability, +/-1 ppm frequency stability
-127 dBm to +7 dBm amplitude, 0.1 dB steps
Locking to external frequency standard
AM, FM and Phase modulation, internal or external
80 character back-lit LCD display
Keyboard and rotary encoder control
Full remote control though RS232 and GPIB

(exkl. MwSt.)	€ 3 092,36
Preis inkl. MwSt.	€ 3 710,83
Stk.
Verfügbarkeit des Produkts	4 Wochen
Produktnummer	AIM-TTI_TGR2050

Zusammenhängende Produkte
Zubehör

Garantie 36 Monate

Produktseite des Hersteller

Detailbeschreibung
Videos und Dateien zum Herunterladen

Detailbeschreibung AIM-TTI_TGR2050 2GHz RF Signal Generator, RS232 & GPIB

The TGR series are low cost, synthesised RF signal generators that incorporate the essential features required for most development, test and service work; namely high frequency accuracy and stability, wide dynamic range, low phase noise and leakage, and flexible modulation capabilities.

The TGR2050 covers from 150kHz up to 2GHz and incorporates AM, FM and Phase modulation (internal and external). The wide frequency range and comprehensive modulation capabilities make it suitable for most tasks within the 2GHz spectrum.

The TGR1040 has a more restricted frequency range of 10MHz to 1GHz and incorporates FM modulation only (internal and external). It retains the high stability and wide amplitude range of the 2050 making it suitable for many task including FM radio receiver sensitivity measurements, system gain measurements, receiver tuning & alignment, oscillator substitutions, EMC/antenna/field strength measurements and as a signal source for many other RF circuit and system development tasks.

Both instruments can be operated using either numeric or rotary controls, and can be remotely controlled via either an RS-232 interface or GPIB interface. Nine memories are provided for user set-ups.
