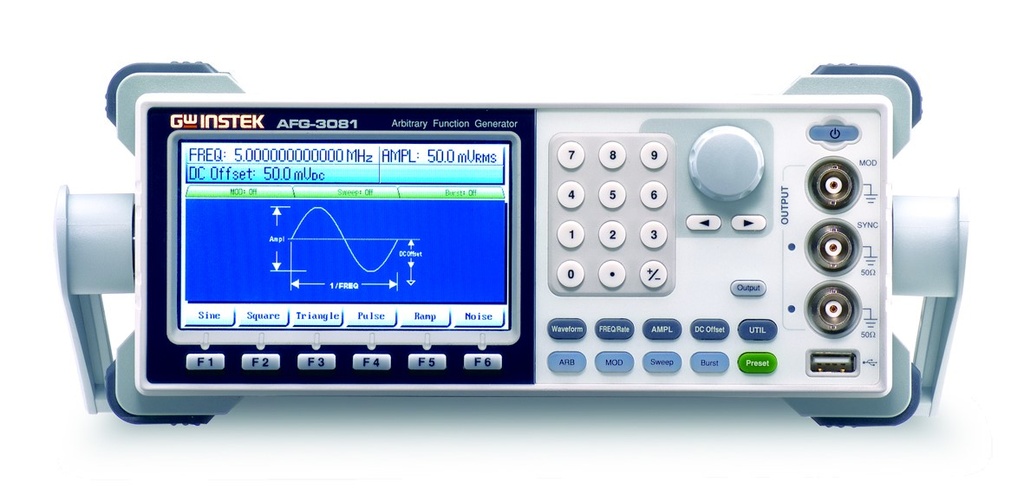

GW Instek_AFG-3081 80MHz Arbitrary Function Generator

Wide frequency range from 1 µHz to 80 MHz
High 200MSa/s sampling rate
16-bit Amplitude Resolution
Output from any section of 1M-point-long waveform
4.3" high resolution LCD display/on-screen help/Impedance switch
Four ways to generate arbitrary waveform: Front Panel Operation
CSV file uploading, Direct Waveform Reconstruction (DWR), Arbitrary
Waveform Editing PC Software
USB, RS-232, GPIB interface support

Detaillierte Informationen

Weitere Produkte in der Kategorie

(exkl. MwSt.)	€ 2 483,20
Preis inkl. MwSt.	€ 2 979,84
Stk.
Verfügbarkeit des Produkts	4 Wochen
Produktnummer	GW_AFG-3081

Zusammenhängende Produkte

Garantie 24 Monate

Produktseite des Hersteller

Detailbeschreibung
Videos und Dateien zum Herunterladen

Detailbeschreibung GW Instek_AFG-3081 80MHz Arbitrary Function Generator

The AFG-3000 Series is arbitrary waveform generator designed for industrial, scientific research and educational applications. The series comes in bandwidths of 80MHz (AFG-3081) and 50MHz (AFG-3051) with built-in multiple standard waveforms to meet users' diversified needs.

The AFG-3000 Series also provides a high 16 bit resolution, 200MSa/s sample rate and a 1M memory depth for editing arbitrary waveforms directly through the intuitive user interface. The Direct Waveform Reconstruction (DWR) function enables users to directly import waveforms from a GDS-2000 Series oscilloscope to the AFG-3000 via USB host, allowing users to edit waveforms and enhance measurement efficiency. In addition, the AFG-3000 Series has switchable 50 Ohm and Hi-Z Impedances, built-in On-Screen Help for operation conveniently. Complete parameter settings and waveform can be displayed through 4.3-inch high-resolution TFT LCD. Through USB, RS-232, and GPIB, user can use dedicated PC software or IEEE488.2 commands to edit waveforms.
