Keysight DSOX1EMBD Embedded Serial Triggering and Analysis for InfiniiVision DSOX1000 Series Oscilloscopes
Keysight DSOX1EMBD Embedded Serial Triggering and Analysis for InfiniiVision DSOX1000 Series Oscilloscopes
- The fastest throughput oscilloscope solution for triggering on and analyzing I²C, SPI and UART/RS-232 serial buses
- Support for the I²C serial protocol
- Support for the 3-wire SPI serial protocol

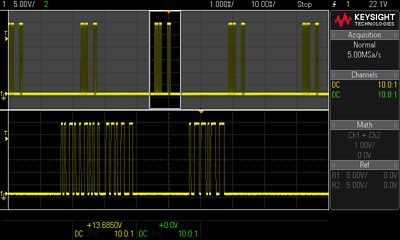

- On-screen serial decode time-correlated with the serial data waveforms
- Protocol trigger and hardware-based protocol decode Detaillierte Informationen
| (exkl. MwSt.) | € 132,89 |
| Preis inkl. MwSt. | € 159,47 |
| Verfügbarkeit des Produkts | 4 Wochen |
| Produktnummer | DSOX1EMBD |
Garantie 36 Monate
Detailbeschreibung Keysight DSOX1EMBD Embedded Serial Triggering and Analysis for InfiniiVision DSOX1000 Series Oscilloscopes
The I²C, SPI, and UART/RS-232 serial decode option for InfiniiVision 1000 X-Series oscilloscopes (DSO models) displays responsive, time-aligned, on-screen decode of Inter-Integrated Circuit (I²C), 3-wire Serial Peripheral Interface (SPI), and UART/RS232 serial communication buses. Because it is hardware-based, this option provides the fastest throughput solution for triggering on and analyzing I²C, SPI and UART/RS-232 serial buses found in a wide variety of embedded designs. This measurement application option works with InfiniiVision 1000 X-Series DSOX1102A and DSOX1102G models.
Videos und Dateien zum Herunterladen Keysight DSOX1EMBD Embedded Serial Triggering and Analysis for InfiniiVision DSOX1000 Series Oscilloscopes
Typ: pdfDas Produkt ist in den folgenden Kategorien eingestuft
