Keysight DSOX2WAVEGEN Built-in Function Generator Option for InfiniiVision 2000 X-Series Oscilloscopes
Key Features & Specifications
- An industry first, the 2000 X-Series offers an integrated 20 MHz function generator
- Turn on WaveGen at any time by ordering the DSOX2WaveGen option and install the license yourself

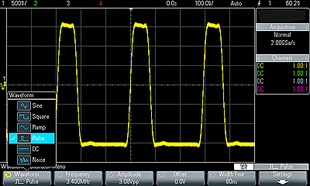

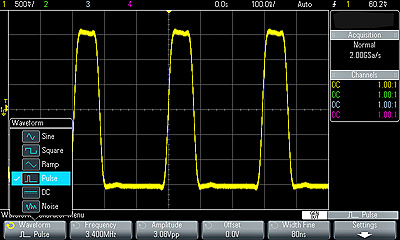

- The WaveGen can produce the following wave shapes: sine wave, square wave (with variable duty cycle), ramp, pulse (with variable pulse width), DC, and noise
- Output levels can range from 20 mVp-p up to 5.0 Vp-p when terminated into high impedance, or 10 mVp-p to 2.5 Vp-pwhen terminated into 50-Ω. Detaillierte Informationen
(exkl. MwSt.) | € 436,50 |
Preis inkl. MwSt. | € 523,80 |
Verfügbarkeit des Produkts | 4 Wochen |
Produktnummer | DSOX2WAVEGEN |
Garantie 36 Monate
Detailbeschreibung Keysight DSOX2WAVEGEN Built-in Function Generator Option for InfiniiVision 2000 X-Series Oscilloscopes
An industry first, the 2000 X-Series offers an integrated 20 MHz function generator. Ideal for educational or design labs where bench space and budget are at a premium, the integrated function generator provides stimulus output of sine, square, ramp, pulse, DC and noise waveforms to your device under test. No need to buy a separate function generator when you can get one integrated in your new oscilloscope. The WaveGen provides an industry-first, general-purpose, integrated 20-MHz function generator capabilities with user-definable frequencies, amplitudes, offset, and pulse widths. The WaveGen’s output is routed to a BNC on the front panel of the oscilloscope below the display. This WaveGen option works with all InfiniiVision 2000 X-Series 2 channel and 4 channel DSO and MSO models.
