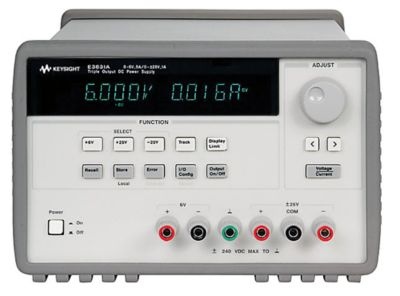

Einführung DC Netzteile Keysight DC Netzteile Keysight E3631A DC power supply. Triple output: 0- +25V, 0-1A; 0- -25V, 0-1A; 0- 6V, 0-5A 80W.

Keysight E3631A DC power supply. Triple output: 0- +25V, 0-1A; 0- -25V, 0-1A; 0- 6V, 0-5A 80W.

Keysight E3631A DC power supply. Triple output: 0- +25V, 0-1A; 0- -25V, 0-1A; 0- 6V, 0-5A 80W.

Keysight E3631A DC power supply. Triple output: 0- +25V, 0-1A; 0- -25V, 0-1A; 0- 6V, 0-5A 80W.

Output Ratings



  • Output 1: 0 to 6 V, 0 to 5 A
    •
  • Output 2: 0 to +25 V, 0 to 1 A
    •
  • Output 3: 0 to -25 V, 0 to 1 A
    •


Programming Accuracy at 25°C ±5°C



  • Voltage: 0.05% + 20 mV, 0.05% + 20 mV, 0.1% + 5 mV
    •
  • Current: 0.15% + 4 mA, 0.15% + 4 mA, 0.2% + 10 mA
    •


Ripple & Noise (20 Hz to 20 MHz)



  • Normal Mode Voltage: <350 µVrms/ 2 mV p-p, <350 µV rms/2 mV p-p, <350 µV rms/2 mV p-p
    •
  • Normal-mode current: <500 µA rms, <500 µA rms, <2 mA rms
    •
  • Common-mode current: <1.5 µA rms, <1.5 µA rms, <1.5 µA rms
    •


Readback Accuracy at 25°C ±5°C



  • Voltage: 0.05% + 10 mV, 0.05% + 10 mV, 0.1% + 5 mV
    •
  • Current: 0.15% + 4 mA, 0.15% + 4 mA, 0.2% + 10 mA
    •

Weitere Produkte in der Kategorie
(exkl. MwSt.) € 1 473,43
Preis inkl. MwSt. € 1 768,12
 Stk.
Verfügbarkeit des Produkts 7 Wochen
Produktnummer E3631A

Garantie 36 Monate

Produktseite des Hersteller

Detailbeschreibung Keysight E3631A DC power supply. Triple output: 0- +25V, 0-1A; 0- -25V, 0-1A; 0- 6V, 0-5A 80W.

Keysight basic DC power supplies offer essential features for a tight budget. The triple output, 80 W, GPIB, E3631A provides small, compact size for bench use; low output ripple and noise; built-in measurements and basic programmable features with GPIB and RS232 interface. This clean and reliable supply is designed for general purpose applications; and combines convenient benchtop capabilities with flexible system features in a compact, multi-output package.

Nach oben

Zeigen videos und dateien zum herunterladen  »

Videos und Dateien zum Herunterladen Keysight E3631A DC power supply. Triple output: 0- +25V, 0-1A; 0- -25V, 0-1A; 0- 6V, 0-5A 80W.

E363xA Series Programmable DC Power Supplies - Data Sheet [5968-9726EN]
