Keysight EDUX1EMBD Embedded Serial Triggering and Analysis for InfiniiVision EDUX1000 Series Oscilloscopes
Keysight EDUX1EMBD Embedded Serial Triggering and Analysis for InfiniiVision EDUX1000 Series Oscilloscopes
- The fastest throughput oscilloscope solution for triggering on and analyzing I²C and UART/RS-232 serial buses
- Support for the I²C serial protocol

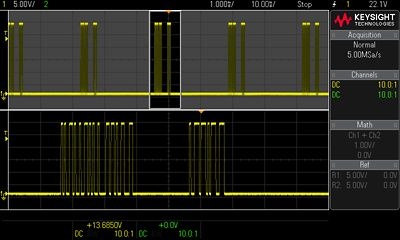

- On-screen serial decode time-correlated with the serial data waveforms
- Protocol trigger and hardware-based protocol decode Detaillierte Informationen
| (exkl. MwSt.) | € 132,89 |
| Preis inkl. MwSt. | € 159,47 |
| Verfügbarkeit des Produkts | 4 Wochen |
| Produktnummer | EDUX1EMBD |
Garantie 36 Monate
Detailbeschreibung Keysight EDUX1EMBD Embedded Serial Triggering and Analysis for InfiniiVision EDUX1000 Series Oscilloscopes
The I²C and UART/RS-232 serial decode option for InfiniiVision 1000 X-Series oscilloscopes displays responsive, time-aligned, on-screen decode of Inter-Integrated Circuit (I²C) and UART/RS-232 serial communication buses. Because this capability is hardware-based, it provides the fastest throughput solution for triggering on and analyzing these serial buses. These buses are found in a wide variety of embedded designs. This measurement application option works with InfiniiVision 1000 X-Series EDUX1002A and EDUX1002G models.
Videos und Dateien zum Herunterladen Keysight EDUX1EMBD Embedded Serial Triggering and Analysis for InfiniiVision EDUX1000 Series Oscilloscopes
Typ: pdfDas Produkt ist in den folgenden Kategorien eingestuft
