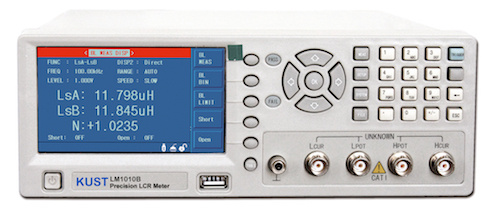

Kust LM1010A Precision LCR Meter

LM1010: up to 200kHz with 37 frequency points

AC Signal: 20mV - 1V
Up to 40 measurement/sec.
30Ω, 100Ω output impedance
4.3” LCD Display
Test Signal Level Monitor
Parameters: L,C, R, |Z|, D, X, θ, Q, DCR
Basic Accuracy: 0.05%
Comms: RS232, HANDLER,USB host, GPIB(optional)
Internal memory for 100 instrument settings
LED Indication of the result Green - PASS / Red - FAIL
Beeper - result sound indication
Trigger Function: Manual, Internal, External, BUS
Internal Memory for 100 Instrument Settings
Key-Lock with password function
Correction/Compensation Function

(exkl. MwSt.)	€ 894,63
Preis inkl. MwSt.	€ 1 073,56
Stk.
Verfügbarkeit des Produkts	Auf Lager
Produktnummer	KU_LM1010A

Zusammenhängende Produkte

Garantie 12 Monate

Produktseite des Hersteller

Detailbeschreibung
Videos und Dateien zum Herunterladen

Detailbeschreibung Kust LM1010A Precision LCR Meter

LM1010 is a precision LCR meter with high accuracy, good stability, and wide measurement range. Controlled by a 16 bits MPU, LM1010 can be used for evaluating LCR components, materials and semiconductor devices over a wide range of frequencies (50 Hz to 100kHZ) and test signal levels (50mV to 1V, with 10mV resolution ).

With its powerful functions, excellent performance, easy to read LCD display and easy menu operation, LM1010 is suitable for high speed measurement needed on product line and high accuracy and stability measurement need in laboratory.

By using the Handler interface, IEEE488 interface (optional), and RS232C interface, LM1010 ca be easily implemented to automatic test system or computer remote control.
