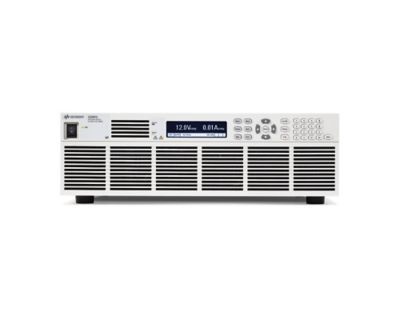

Keysight AC6801A Basic AC Power Source, 500 VA, 270 V, 2.5 A
Keysight AC6801A Basic AC Power Source, 500 VA, 270 V, 2.5 A
AC Output Ratings:
- Power: 500 VA
- Ranges: 135 Vrms, 5 A or 270 Vrms, 2.5 A
- Maximum peak current: 15 A for 135 Vrms; 7.5 A for 270 Vrms
- Frequency: 40 to 500 Hz
DC Output Ratings:
- Power: 400 W
- Ranges: 190 V, 4 A or 380 V, 2 A
Programming Accuracy:
- Voltage: 0.3% of full scale for 135 V range; 0.25% of full scale for 270 V range
Connectivity:
- LAN/LXI-Core
- USB
- Analog interface boa allows you to control the output with external analog signals in two modes:
• The voltage of the output AC waveform (sine wave) varies according to the input DC signal (EXT-AC mode).
• The input waveform is amplified and output (EXT-DC mode).
Detaillierte Informationen
| (exkl. MwSt.) | € 83 226,00 |
| Preis inkl. MwSt. | € 99 871,20 |
| Verfügbarkeit des Produkts | Bald auf Lager |
| Produktnummer | AC6801A |
Garantie 36 Monate
Detailbeschreibung Keysight AC6801A Basic AC Power Source, 500 VA, 270 V, 2.5 A
The Keysight AC6800 Series basic AC sources provide a new, basic AC source alternative with just the quality and capability you need. The AC6801A offers:
- A complete AC and DC power and measurement solution.
- A simple, intuitive user interface tested over time that allows you to easily access and view setup and measurement information directly from the front panel or programmatically.
- Flexible IO to meet your needs.
- LAN/LXI-Core and USB interfaces standard.
- GPIB is optional, or choose an analog interface board as described above.
- Lower cost of ownership – backed with global support and the longest standard warranty.
Videos und Dateien zum Herunterladen Keysight AC6801A Basic AC Power Source, 500 VA, 270 V, 2.5 A
Typ: pdfVideos
