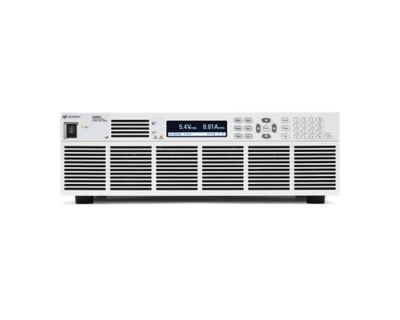

Keysight AC6802A Basic AC Power Source, 1000 VA, 270 V, 5 A

AC Output Ratings:

Power: 1000 VA
Ranges: 135 Vrms, 10 A or 270 Vrms, 5 A
Maximum peak current: 30 A for 135 Vrms; 15 A for 270 Vrms
Frequency: 40 to 500 Hz

DC Output Ratings:

Power: 800 W
Ranges: 190 V, 8 A or 380 V, 4 A

Programming Accuracy:

Voltage: 0.3% of full scale for 135 V range; 0.25% of full scale for 270 V range

Connectivity:

LAN/LXI-Core
USB
Analog interface boa mallows you to control the output with external analog signals in two modes:
• The voltage of the output AC waveform (sine wave) varies according to the input DC signal (EXT-AC mode).
• The input waveform is amplified and output (EXT-DC mode).

Detaillierte Informationen

Weitere Produkte in der Kategorie

(exkl. MwSt.)	€ 113 724,00
Preis inkl. MwSt.	€ 136 468,80
Stk.
Verfügbarkeit des Produkts	Bald auf Lager
Produktnummer	AC6802A

Zusammenhängende Produkte
Alternative Produkte

Garantie 36 Monate

Produktseite des Hersteller

Detailbeschreibung
Videos und Dateien zum Herunterladen

Detailbeschreibung Keysight AC6802A Basic AC Power Source, 1000 VA, 270 V, 5 A

The Keysight AC6800 Series basic AC sources provide a new, basic AC source alternative with just the quality and capability you need. The AC6802A offers:

A complete AC and DC power and measurement solution.
A simple, intuitive user interface tested over time that allows you to easily access and view setup and measurement information directly from the front panel or programmatically.
Flexible IO to meet your needs.
- LAN/LXI-Core and USB interfaces standard.
- GPIB is optional, or choose an analog interface board as described above.
Lower cost of ownership – backed with global support and the longest standard warranty.
